AlphaAir 10
Next Generation UAV Lidar+Imaging System
Next generation mid-range airborne LiDAR system, which integrates high-performance LiDAR, full-frame camera, high-precision multi-constellation GNSS/inertial navigation
-
Long-range LiDAR scanning of up to 800 m, along with high-speed scanning of up to 500,000 points per second
Strong vegetation penetration, up to 8 returns, ability to easily generate real DEM, DSM in challenging conditions
Includes multi-constellation GNSS, high-precision IMU, and full-frame camera for high-accuracy UAV LiDAR+Imaging
Simple setup on various UAV platforms, including CHCNav X500 and DJI M350/400
Supports automated reality capture and real-time data visualization accessible directly from the UAV controller, enabling informed decision-making throughout the survey operation
Seamlessly integrates LiDAR and RGB sensors to meet the needs of professional UAV LiDAR mapping and drone photogrammetry.
All-in-one processing software, including strip adjustment and orthomosaic, as standard features
Main Features
-
High-Precision LiDAR
5 mm repeated range and 2-5 cm absolute accuracy.
-
45 MP Camera
Integrated full-frame orthographic camera.
-
Lightweight
Only 1.55 kg for easy UAV integration.

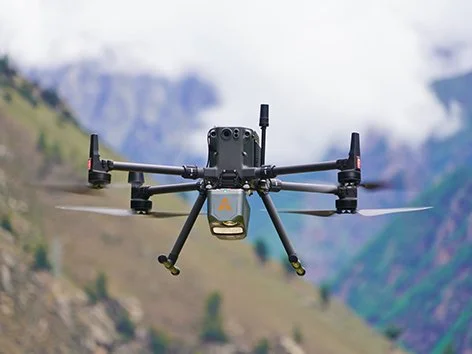

AA10 in Action
Specifications
Laser Scanner
Range: 800m
Scanning Rate: 500,000 pulses/sec
Field of view: 70°
Returns: Up to 8
Positioning
GNSS: Full GNSS
IMU: 500 Hz
Precision max: <5cm H / <5cm V
Imaging
Resolution: 45 MP
Focal Length: 21 mm
Sensors
Camera: Optional external camera
