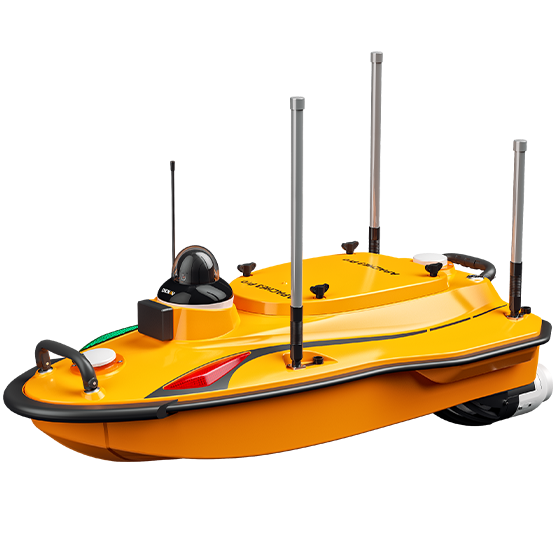

Apache 3 Pro

High Performance Single Beam USV

Compact, high-performance USV designed for autonomous bathymetric surveys in shallow waters

    • comes standard with a D270 single-beam echosounder, RTK GNSS/INS sensors, a millimeter-wave obstacle avoidance radar system

    • tight integration of GNSS and INS sensors eliminates data outliers, and ensures consistent accuracy and reliability, even when navigating under bridges

    • integrates a built-in water temperature sensor to enable real-time sound velocity correction in response to temperature changes, resulting in superior depth measurement accuracy

    • can be equipped with water analysis probes to measure water quality parameters such as pH, temperature, conductivity, dissolved oxygen and more

    • weighs of only 10 kg (excluding sensors), which allows a single operator to effortlessly manage a variety of remote deployment scenarios

    • motor design enables surveys in diverse water conditions

Apache 3 Pro in Action

Specifications

Performances

  • Speed max. : 7 m/s max

  • Payload capacity : 35 kg max

  • Positioning : Full GNSS + IMU

Echosounder

  • Type : Single beam, 200 kHz

  • Range : 0.1 to 200 m

  • Accuracy : ±0.01 m + 0.1% x D

Sensors

  • Camera : 360° video
