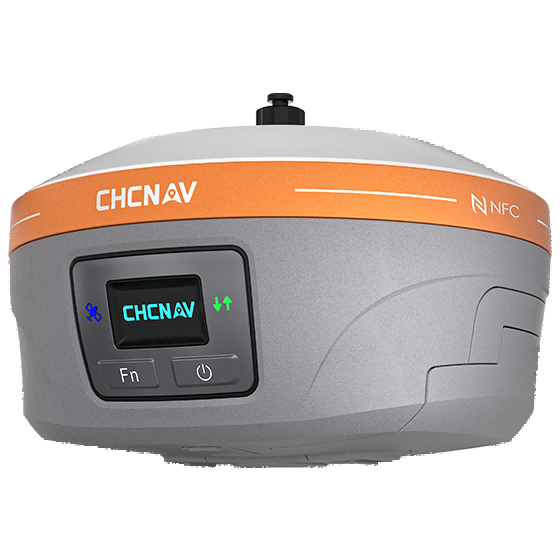

iBase

Integrated GNSS Base for Optimal Ease of Use

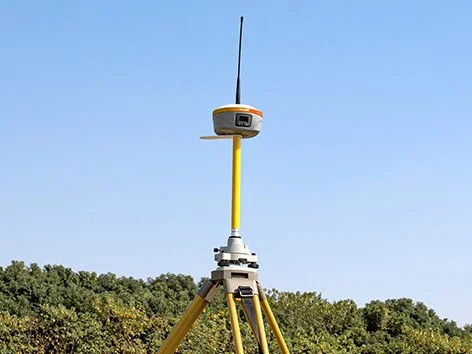

The iBase GNSS receiver offers a streamlined solution as a GNSS base station designed to meet surveyor’s needs. Its performance rivals that of a standard external UHF radio modem without the bulk of external batteries, cables, radios, and antennas. With a 5-watt radio module, it provides GNSS RTK coverage up to 25 km under optimal conditions. Its real-time UHF interference self-checking capability allows operators to select the best frequency channel, increasing ease of use and efficiency.

    • all GNSS constellations with 1408 channels and advanced multipath mitigation

    • rugged conception for uninterrupted work, regardless of the working environment

    • Increased performance with 50% less power consumption

    • built-in connectivity modules, including Bluetooth, Wi-Fi, NFC, 4G, and UHF radio modem

    • various data format, including RTCM 3.x for differential GNSS corrections, RINEX, NMEA 0183, NTRIP Client, NTRIP Caster

Main Features

  • Premium GNSS

    GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS and PPP for robust signal tracking.

  • Long-Range

    5-watt UHF modem for coverage up to 25 km.

  • Cable-free

    No need for external batteries and cables.

  • Long Battery Life

    Up to 12 hours of continuous operation.

Specifications

Positioning

  • GNSS : Full GNSS

  • Precision max. : 0.8 cm H / 1.5 cm V

Connectivity

  • Wireless : Bluetooth, Wi-Fi, NFC

  • Cellular : 4G LTE

  • Modem : 410-470 MHz, Rx/Tx

Physical

  • Battery life : Up to 12 hours RTK base
